WANSCAM HW0029-5 Built-in LI Battery 24AH P2P Ap Onvif Wireless 2MP Outdoor HD Solar Power IP Camera Built-in 16GB SD Card

FOB Reference Price:Get Latest Price
US $108-112 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
40000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WANSCAM
Model Number:
HW0029-5 Solar Power IP Camera
Type:
IP Camera, Wireless Solar Power IP Camera
Style:
Dome Camera
Sensor:
CMOS
Technology:
Infrared
Special Features:
Solar Power IP Camera
Lens:
Lens 6mm.
SD Card:
Built-in 16GB SD Card.
P2P PNP:
Free P2P function, plug and play.
WIFI Standard:
802.11 b/g/n, Solar Power IP Camera.
Battery:
2 Built-in Li Batteries, More Than 48hours Time.
Resolution:
2MP, 1920*10800P.
Mobile View:
AP Function, Point to Point.
Certifications:
CE,FCC,RoHS
Warranty:
2 years warranty.
Packaging & Delivery
Packaging Details
4pcs per carton.
Item Size: 127mm x 100mm (HxW)
Packaging Size: 200mm x 120mm x 179mm (LxWxH)
N.W.: 335g G.W.: 500g(Note:Actual Weight Final)
Printed user manual, screws, power adapter.
WANSCAM HW0029-5 Built-in LI Battery 24AH P2P Ap Onvif Wireless 2MP Outdoor HD Solar Power IP Camera Built-in 16GB SD Card
Delivery Time
3 workdays

WANSCAM HW0029-5 Built-in LI Battery 24AH P2P Ap Onvif Wireless 2MP Outdoor HD Solar Power IP Camera Built-in 16GB SD Card



Key Features:



1. H.264, Solar Power camera; 2Megapixel. 1080P.
2. Lens 6 mm
3. Wi-Fi/802.11/b/g/n, AP Function( easy to connect wifi) , RJ45 interface, PC CMS to control multi-cameras.
4. Motion detection, email alert, FTP upload
5. Support Video Mask and Special Area Dection.
6. 12 languages, Firefox, Safari, Google,IE browser.
7. Built-in IR Cut,No Color Cast.
8. P2P, PNP: Plug&play, Support QR code scanning to view on Iphone and android Mobiles
9. No need to connect power adaptor, not only security, but also energy saving.

WANSCAM HW0029-5 Built-in LI Battery 24AH P2P Ap Onvif Wireless 2MP Outdoor HD Solar Power IP Camera Built-in 16GB SD Card

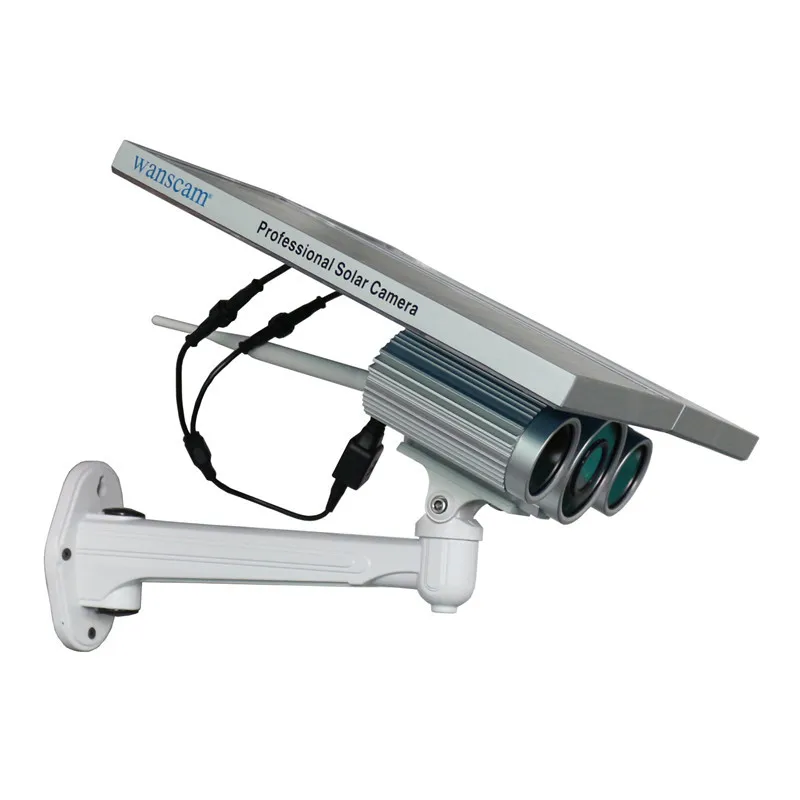

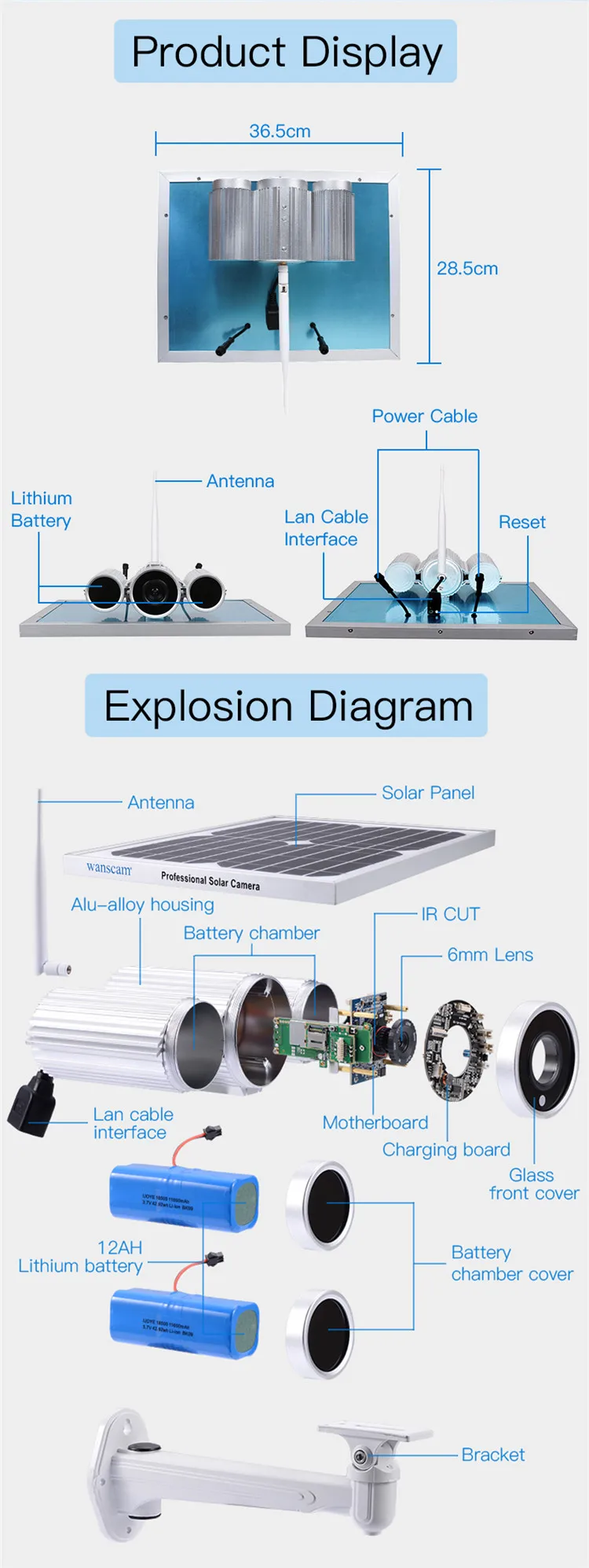

Specifications of WANSCAM HW0029-5, Wireless Solar Power IP Camera.



Model: HW0029-5
SystemSystem SecuritySupports there-level account, password, user authority management.
OSEmbedded Linux OS
ProcessorHi3516C+IMX291 Star light sensor
P2P(Free)No need to preset camera, Offer free  P2P(ZZZZ-000xxx-xxxxx), Plug&play, Support  QR code scanning to view
Onvif ProtocolSupport ONVIF protocol
PC Browser

Support 12 language remote surveillance, record, alarm, wifi

setting etc.

PC clientSupport remote multi-devices monitor, record, alarm etc.
Cell Phone ViewSelf R&D APP, Support Iphone,Android smart Phone
TF Card RecordBuilt In 16G TF Card,support max 128G
LensLens typeLens Standard : 6mm
IR-CUTBuild-in IR CUT, No color cast

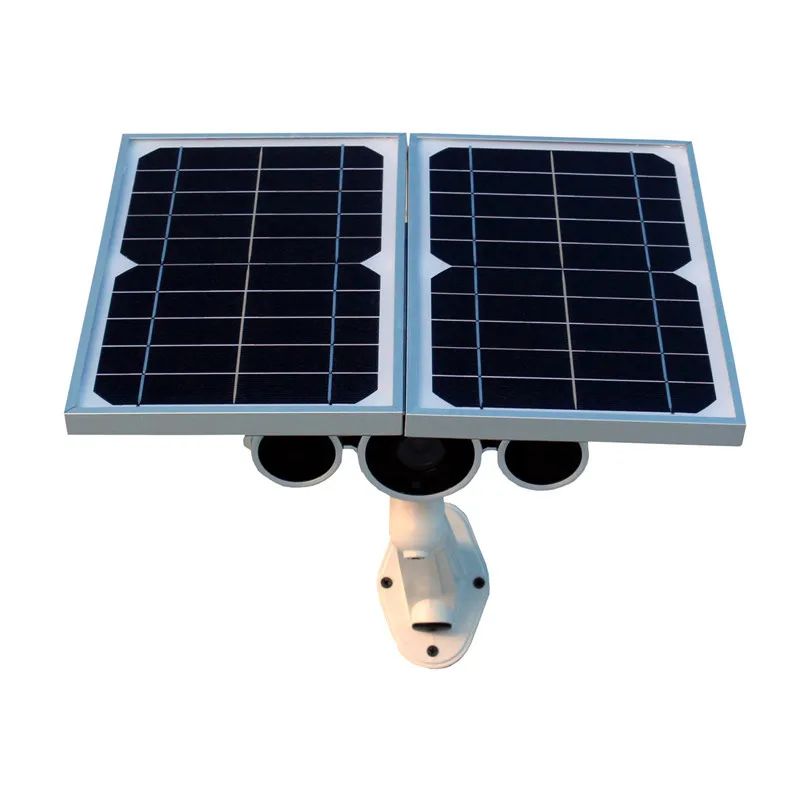

Solar PowerMaterialEfficient thin-film solar panels
BatteryStandby time is 54 hours when it is with the full batteries
The full battery can last 26 hours when its rainy and cloudy days
The camera will work continously when its 33℃ above
VideoImage CompressionH.264 Main profile/Baseline profile
Sensor1/2.8  2M Starlight CMOS Sensor
Video ParametersBrightness, Contrast,Saturation,Exposure,sharpness can be adjusted
Image Frame Rate50Hz:25fps/60HZ:30fps (1920×1080)
StreamFirst Stream: 1080P- (1920×1080) (1280x720),(640x352)
Second Stream: 1280×960,1280×720 VGA-(640x352) ,(320x176)
Night VisionNight Visibility100 Meters
Lux0.0001LUX(Starlight Level)
Pan/TiltPresetNone
Rotation AngleNone
Rotation SpeedNone
AlarmMotion Detect

Support 4 Independent detection areas(Sensitivity can be adjustd

1-100)

Alarm ActionSupport Email Photo Alert,Snapshot and Record saved to TF Card

NetworkEthernet InterfaceOne 10/100Mbps RJ-45
Supported ProtocolTCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc
Access ProtocolSupport Onvif protocol
Online VisitorSupport Max 6 visitors at the same time
(First Stream:3 visitors;Second Stream:3 visitors)
IP ModeDynamic IP address, static IP address, PPPOE
Supported OSMicrosoft Win98 SE/ME/2000/XP/Win7/Win8/ Mac OS.
BrowserIE6.0, IE7.0, IE8.0, FireFox, Google or other standard browser
AP FunctionSupport AP connect WIFI
Wireless StandardWIFI,802.11 b/g/n
OthersOSDSupport the OSD name, date and time info superposition(On/Off)
Product TypeMetal Bullet, Outdoor waterproof
PowerDC5V/2A
Solar PowerSupport Solar Power and Battery (24AH)
Battery MaterialLithium
Battery Capacity2x12AH
ColorSilver
Working Temperature–10~70℃
Working Humidity95% RH
SizeItem:370*286*96mm(LxWxH)    Packaging:430x330x130mm(LxWxH)
WeightN.W.: 2880g     G.W.:4320g  (Note:Actual Weight Final)

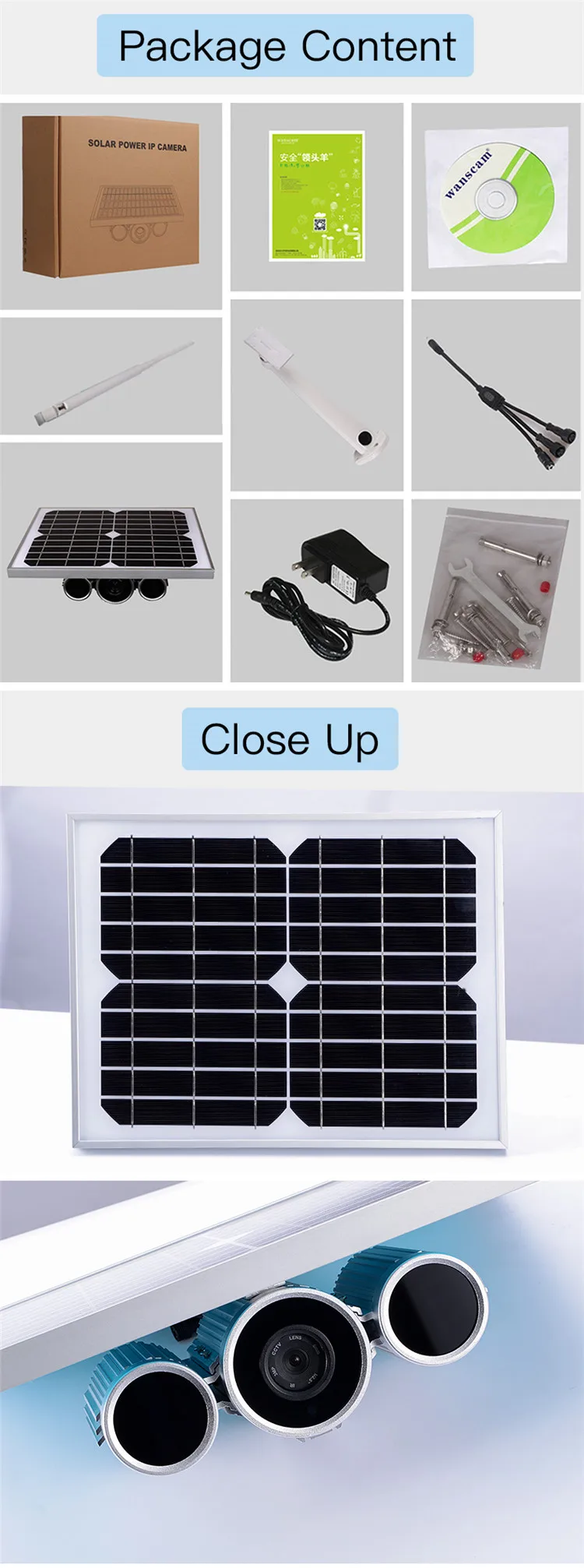

AccessoriesAdaptor, WIFI Antenna, CD (including User manual), Bracket, Screw
CertificationCertificationCE, FCC, RoHS
WarrantyWarrantyTwo years

















Packaging & Shipping

Item size:       370*290*110  mm            (LxWxH)
Packaging size:  324 X190 X 207mm      (LxWxH)
N.W.:    2.3 kg         G.W.:2.7 kg  (Note:Actual Weight Final)
Printed user manual, screws, power adapter.



Shipment available:  DHL, Fedex, UPS, HK Post, EMS,TNT, Sea Transportation.





Our Services

 We provide 2 years warranty for our products.

 We provide free OEM ODM service.

 Online demo avaialble.
